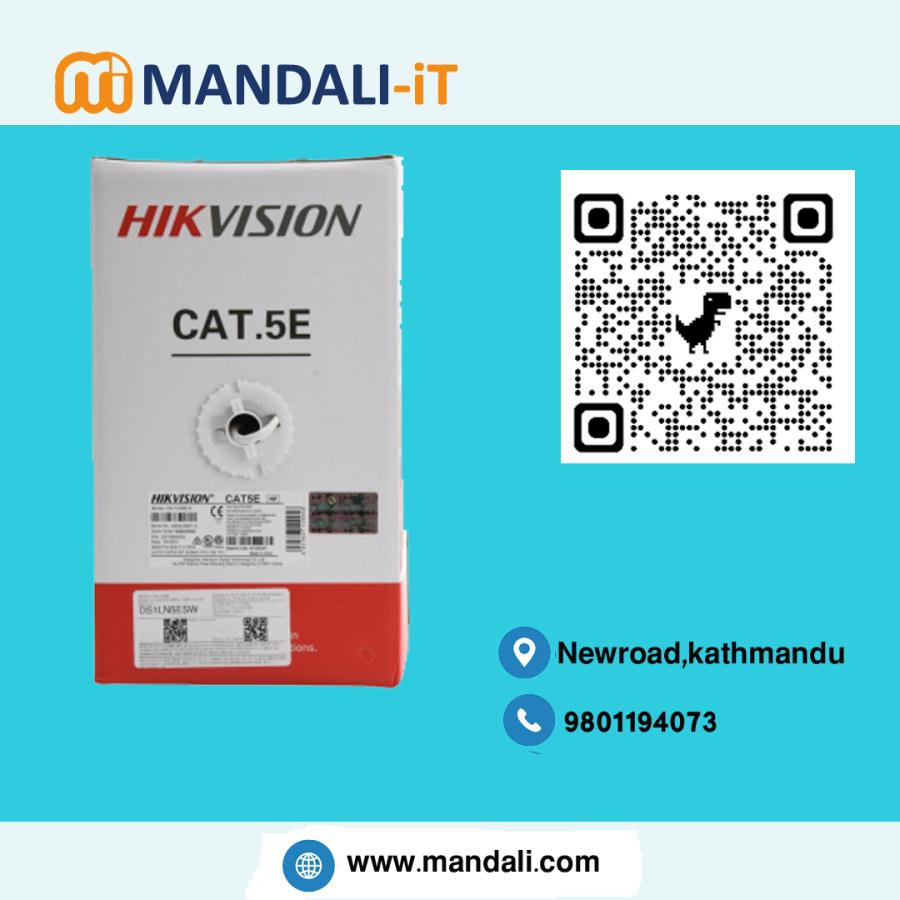

Hikvision cat5E cable

Rs. 13500 / Piece

  • DS-1LN5EU-WCMR
  • Core Color

    1 White- Blue /Bluet2 White-Orange /Orange

    3 White- Green /Greent4 White- Brown /Brown

  • PackingWooden Tray & Carton
  • Carton DimensionAccording to the requires
  • Packing Length(305±1.5)m
  • Rip-CordYes
  • Sheath Physical Properties

    Before Aging Tensile Strength (Mpa) ≥13.5

    Elongation(%) ≥150

    Aging Period( (℃×hrs) 100℃×24h×10d

    After Aging Tensile Strength(Mpa) ≥12.5

    Elongation(%) ≥125

    Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks

  • Electrical Characteristics (21℃)

    1.0-100.0MHz Impedance(Ω) 100±15

    1.0-100.0MHz Delay Skew (ns/100m) ≤45

    DC Resistance(Ω/100m) max 9.5

    DC Conductor Resistance Unbalance(%) max 5.0

  • Conductor
  • MaterialSolid-Bare Copper
  • Nom.O.D.(Mm)0.500
  • Insulation
  • Material

    HDPE

    Densityt0.945±0.02 g/cm3

  • Diameter0.88±0.05mm
  • Sheath
  • Thickness0.50±0.05 mm
  • External O.D.5.0±0.4 mm
  • SurfaceClean,Frap,Satiation
  • Material

    PVC(complies RoHS)

    Densityt1.56±0.03 g/cm3

    Hardnesst48±3 Shore D

  • ColorBlue ZLC2002，White RAL9003
