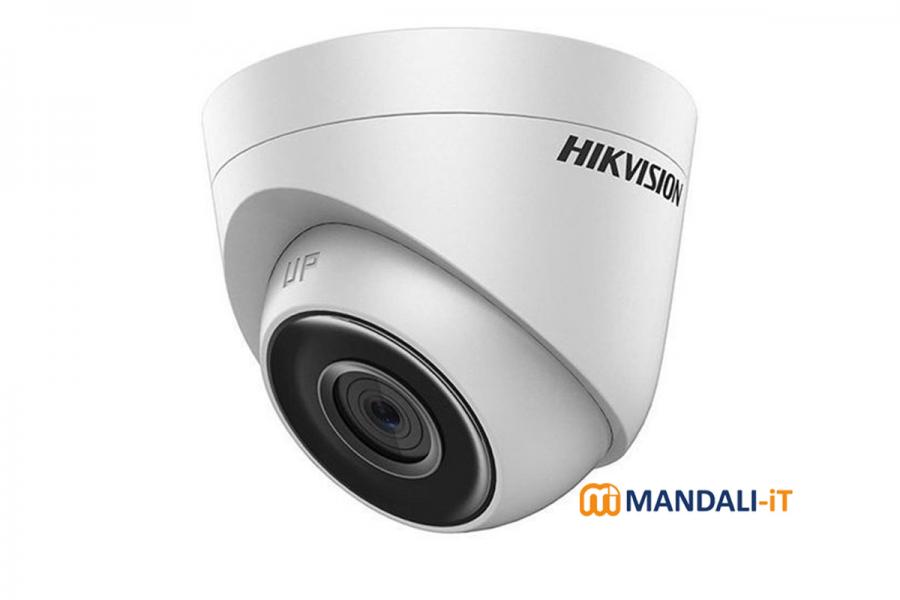

HikVision 2MP IP Dome H.265+ Network Camera DS-2CD1323GOE-I

Product details of HikVision 2MP IR Dome H.265+ Network Camera DS-2CD1323GOE-I

• 2.54cm progressive scan CMOS
• 3D DNR (Digital Noise Reduction)
• 1920 × 1080@30fps
• Up to 30 m IR range
• 2.8 mm/4 mm/6 mm fixed lens
• PoE (Power over Ethernet)
• H.265+, H.265, H.264+, H.264
• IP67
• Dual stream
• Digital WDR (Wide Dynamic Range
• Image Sensor 2.54cm progressive scan CMOS
• Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed 1/3 s to 1/100, 000 s
• Slow Shutter Yes
• Auto-Iris No
• Day &Night IR cut filter
• Digital Noise Reduction 3D DNR
• WDR Digital WDR
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
• Focal Length 2.8 mm, 4 mm, 6 mm
• Aperture F2.0
• Focus No
• FOV 2.8 mm, horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° 6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
• Lens Mount M12
• Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.264+ Main stream supports
• H.265 Type Main Profile
• H.265+ Main stream supports
• Video Bit Rate 32 Kbps to 8 Mbps
• Region of Interest 1 fixed region for main stream and sub-stream
• Max. Resolution 1920 × 1080
• Main Stream Max. Frame Rate 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image Enhancement BLC, 3D DNR
• Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch Auto, scheduled
• Alarm Trigger Motion detection, video tampering alarm, illegal login
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Firmware Version 5.5.2
• API ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View Up to 6 channels
• User/Host Up to 32 users 3 levels: Administrator, Operator and User
• Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
• Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
• Power Consumption and Current 12 VDC, 0.4 A, max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
• Ingress Protection IP67
• Material Metal & Plastic
• Dimensions Camera: Ø 110 mm × 93.2 mm ( 4.3inch× 3.7inch) With package: 150 mm × 150 mm × 141 mm (5.9inch × 5.9inch × 5.6inch)
• Weight Camera: approx. 360 g (0.8 lb.) With package: approx. 610 g (1.3 lb.)
