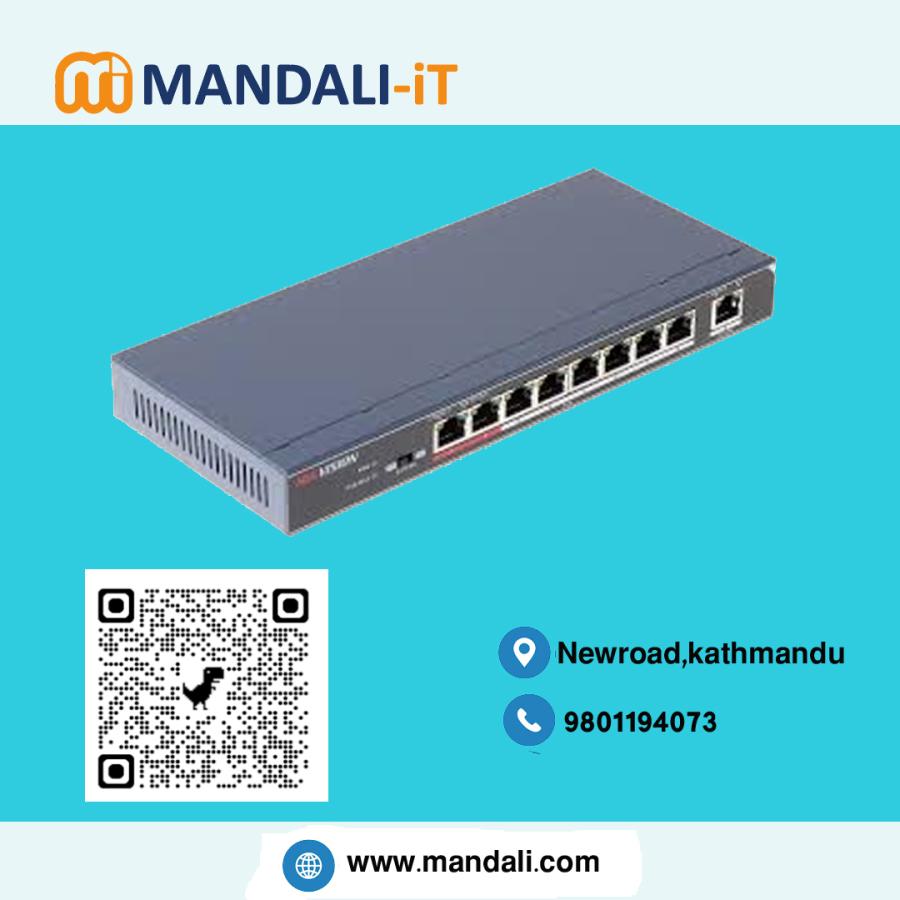

Hikvision 8 port single op link (8+1)Poe switchDS-3E0109P-E

Rs. 5700 / Piece

10/100M RJ45 :9 Ports

High Priority Ports: Port 1-2

Storage and Forwarding :Support

MAC Address Table :4K

Backplane Bandwidth :1.8 Gbps

Standards:  IEEE802.3x,IEEE802.3u,IEEE802.3ab,IEEE802.3

PoE Power Supply Standards: IEEE802.3af, IEEE802.3at

PoE Core: Supporting 8 Core Power Supply, Using 1236 and 4578 Sequences of Network Wire to Supply Power at the same time

PoE ports: Port 1-8

Maximum power supply at port: 30W

Maximum power supply: 120W

Network Extension Mode: Supported by EXTEND Switch

Port Lightning Protection 4KV

Lightning Protection of Power Supply 2KV

Shell: Metal material

Weight:2kg

Size:235X103X28mm

Installation: Desktop Installation, Wall Mounting Installation

Power supply 51V DC, 2.5A

Working Environment: Working Temperature: 0 ~40.

Working humidity: 10%-90% RH does not condensate

Storage Environment: Storage Temperature: - 40 ~70

Storage humidity: 5%-90% RH without condensation
