Mandali IT Solutions Pvt Ltd one door solutions for computer and accessories in Nepal.
Rs. 7200 / Piece
Hikvision NVR DS-7104NI-Q1/4P/M DS-7108NI-Q1/8P/M 4/8CH POE NVR 4MP Record H.265+ SATA for POE IPC Security Network Video Recorder
1. This model is Hikvision original NVR , it support upgrade .
2. Our store support shipping from different warehouse , Products shipped from Spain / Russia / United States / Australia warehouse are Free Import Tax , from China are not free .
3. Please contact us if you can't find the models you need , we can order from Hikvision Factory for you ( MOQ>1000USD ) .
4. Please contact us if you are an installer or local agent .

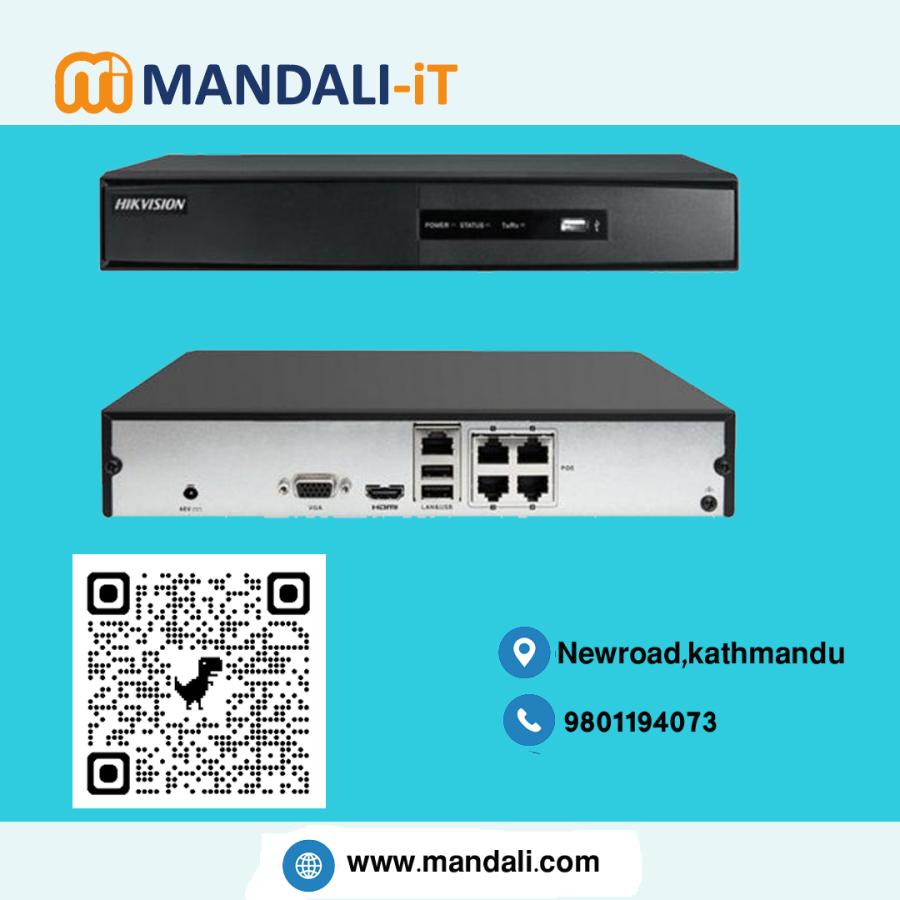

DS-7104NI-Q1/4P/M & DS-7108NI-Q1/8P/M
4-ch/8-ch Mini 4/8 PoE 1U NVR
> Up to 4/8 channel IP cameras can be connected
> Supports decoding H.265+/H.265/H.264+/H.264 video formats
> Up to 4 MP high-definition live view, storage and playback
> Up to 4-ch @ 1080p decoding capacity
> Up to 40/60 Mbps high incoming bandwidth ensures IP cameras can be connected
> 1 HDD for continuous video recording
> Plug & Play with 4/8 Power-over-Ethernet (PoE) interfaces.
> Metal case for professional industry applications
|
1.Video And Audio |
|
|
IP Video Input |
4-ch/8-ch Up to 4 MP resolution |
|
HDMI Output |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
VGA Output |
HDMI,VGA |
|
Incoming Bandwidth |
40/60 Mbps |
|
Outgoing Bandwidth |
60 Mbps |
|
2.Decoding |
|
|
Decoding Format |
H.265+,H.265,H.264+,H.264 |
|
Decoding Capability |
1-ch @ 6 MP / 4-ch @ 1080p |
|
Synchronous Playback |
4/8-ch |
|
Recording Resolution |
6MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
3.Network |
|
|
Network Protocol |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
|
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
|
4.PoE |
|
|
Interface |
4/8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Power |
4CH:≤ 36W;8CH:≤ 75W |
|
Standard |
IEEE 802.3 af/at |
|
5.RAID |
|
|
RAID Type |
No |
|
6.Auxiliary Interface |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 6TB capacity for each disk |
|
USB Interface |
2 × USB 2.0 |
|
7.General |
|
|
Power Supply |
48 VDC |
|
Consumption |
≤ 10 W |
|
Working Temperature |
-10 to +55º C (+14 to +131º F) |
|
Working Humidity |
10 to 90 % |
|
Chassis |
1U chassis |
|
Dimension (W × D × H) |
4CH:260 × 225 × 48 mm (10.2" × 8.9" × 1.9");8CH:260 × 225 × 48 mm (10.2" × 8.9" × 1.9"), |
|
Weight (Without HDD) |
≤ 1 kg (2.2 lb) |
